X100 CAR NAVIGATION MULTIMEDIA SYSTEM

DESCRIPTION

X100 adopts the G2983 mainboard solution, CPU adopts the Qualcomm SDM450 8-core 64-bit ARM Cortex-A53 processor's multi network smart LTE Cat 6 module, with built-in Qualcomm Adreno 506 GPU and Android operating system. The microcontroller adopts an embedded processing chip CS32F030C8T6,  radio adopts SILICON LABS company's SI4754C/SI4755 car standard chip, DSP sound effect adopts ROHM BD37534, analog high-definition processing chip adopts TECHPOINT TP9950, and the power amplifier adopts YD7738. Its powerful performance and rich multimedia functions can excellently meet the needs of users for high-speed and multimedia functions in industrial, automotive, and consumer applications.

FEATURES

● Android 9.0/10.0

● Efficient navigation system

● Variety of multimedia infotainment functions

● Built-in ROHM DSP, digital audio processor, good sound quality

● Adopting professional radio Si4754 (or 8035), with built-in RDS processing (Si4755, PTP optional)

● Supports WIFI, bluetooth and 4G network, one external SIM card port

● Supports Carplay & Android Auto

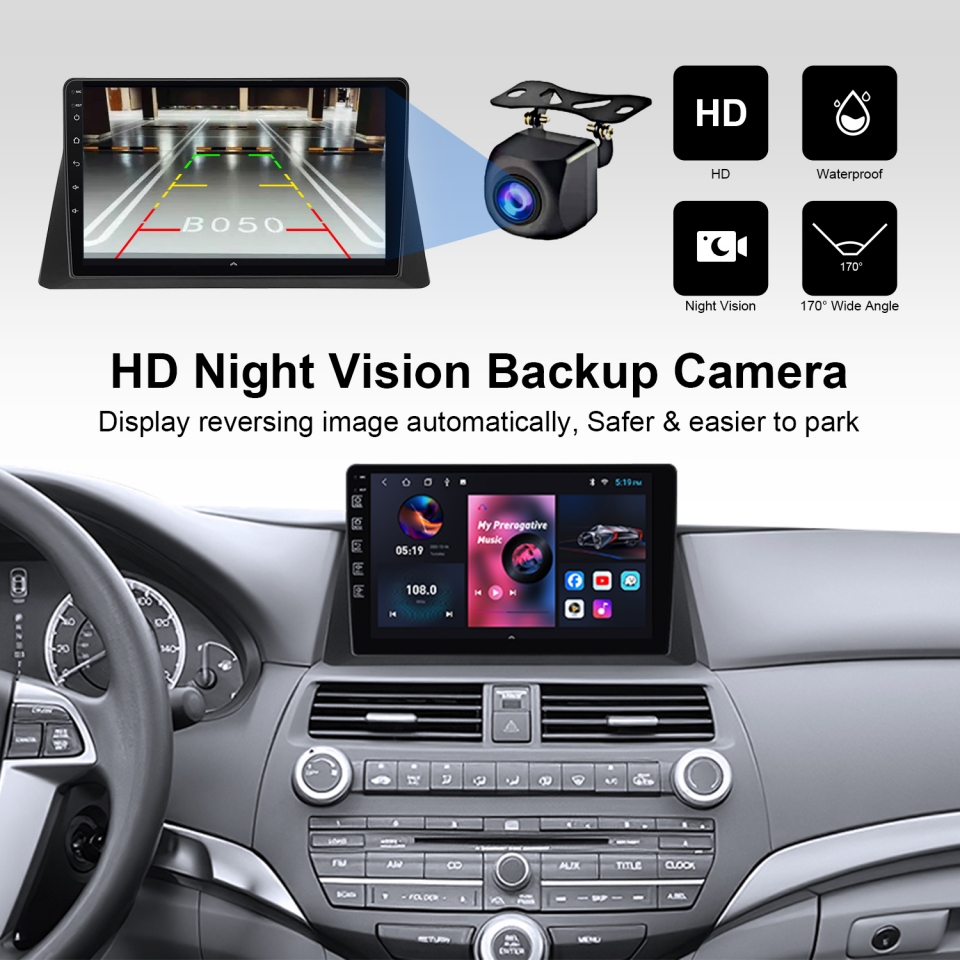

● Supports AHD rear view camera

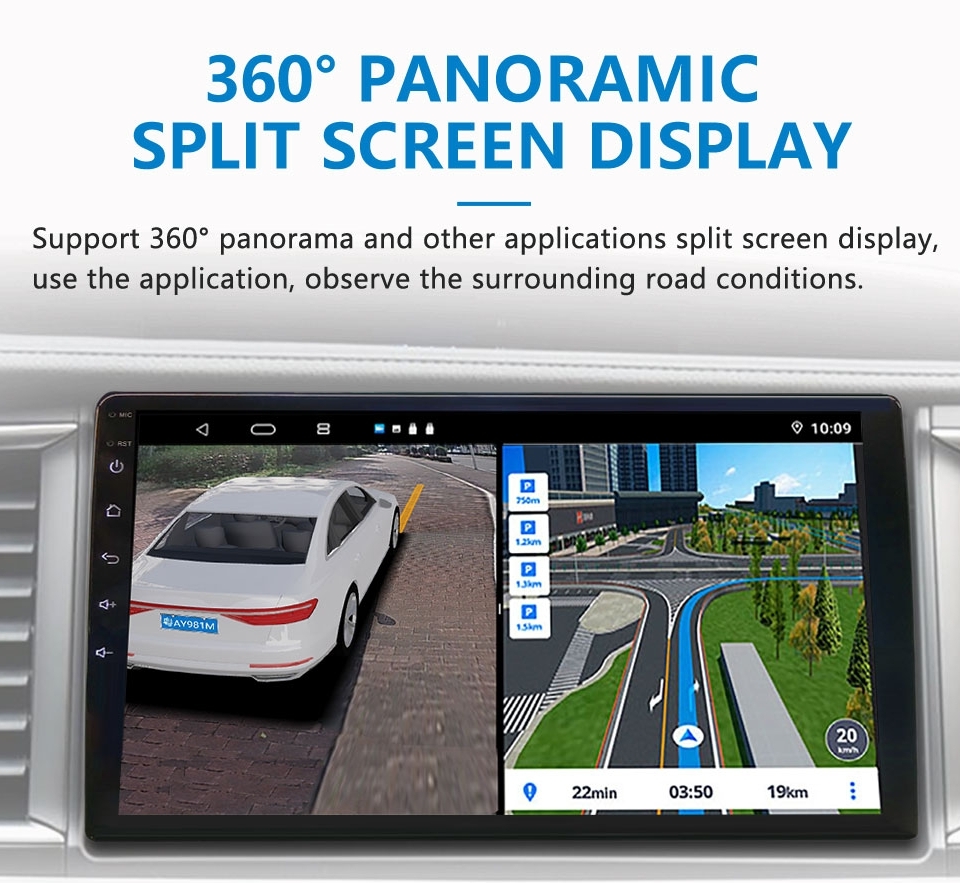

● Supports AHD 360 panorama

● 4 channels of video input, each channel can support up to 1080P @ 60 fps, support 2 channels of simultaneous recording.

● Supports HDMI video output and 4.1 channel audio output (2VRMS)

● Supports AI voice control

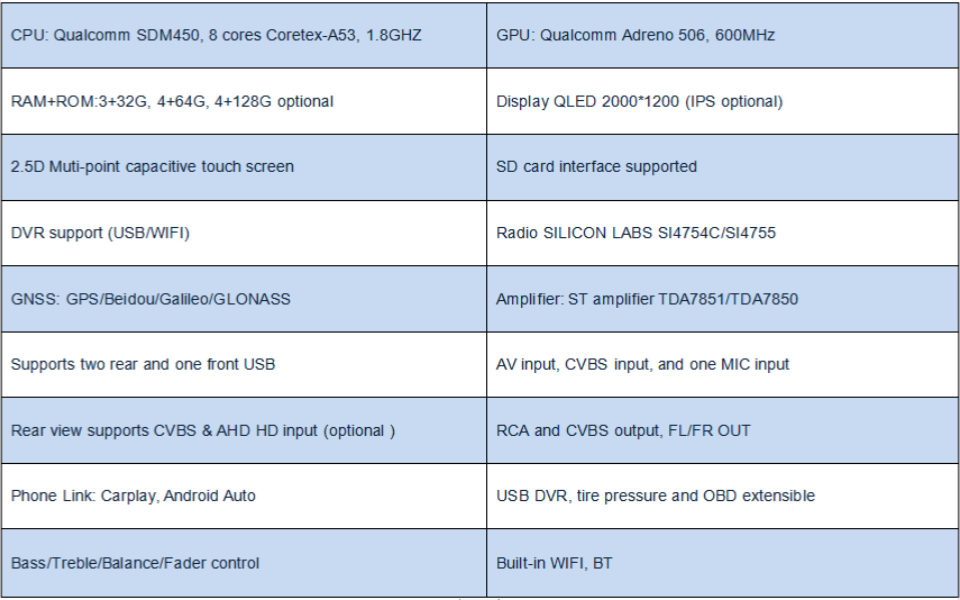

SPECIFICATION
